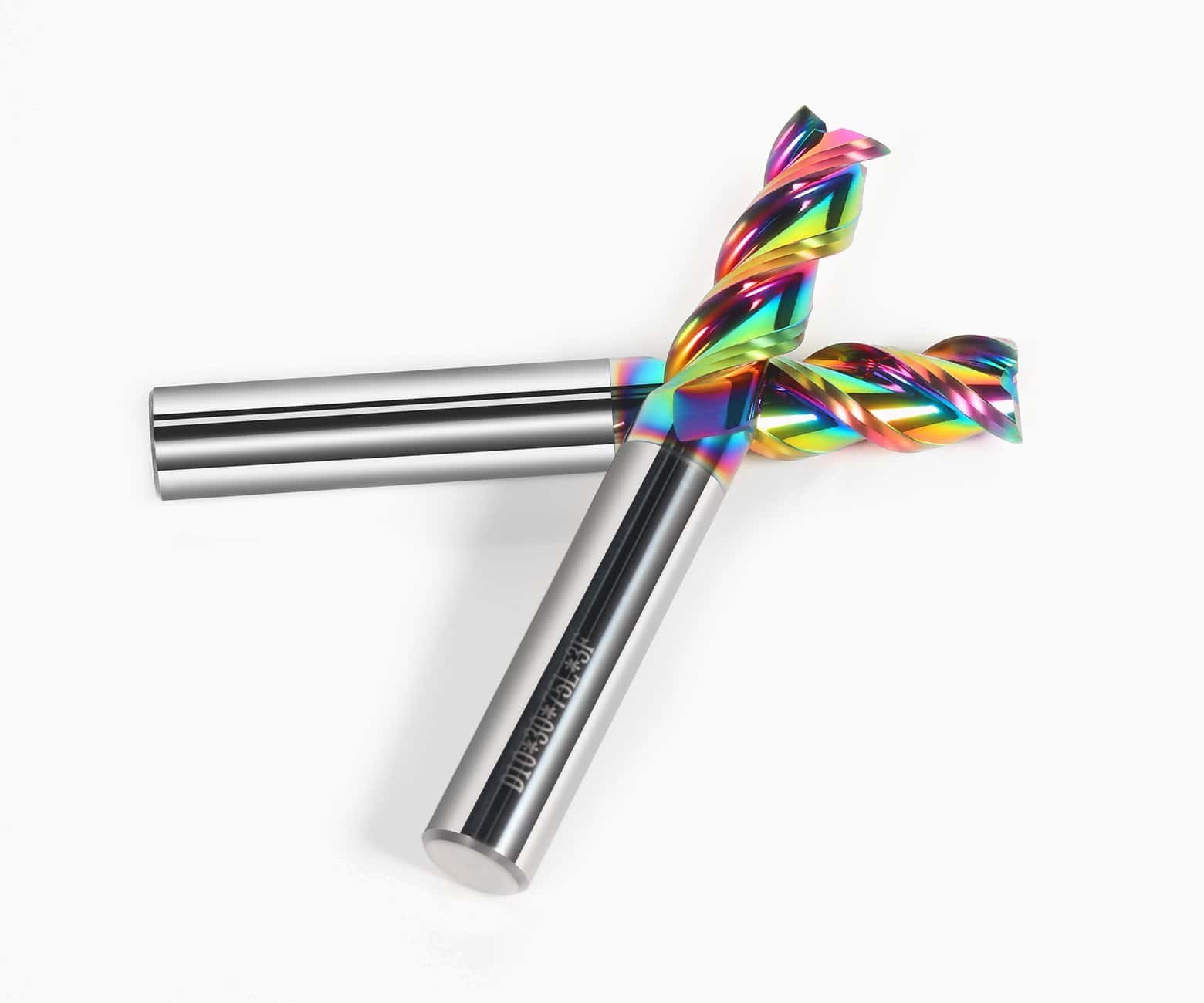

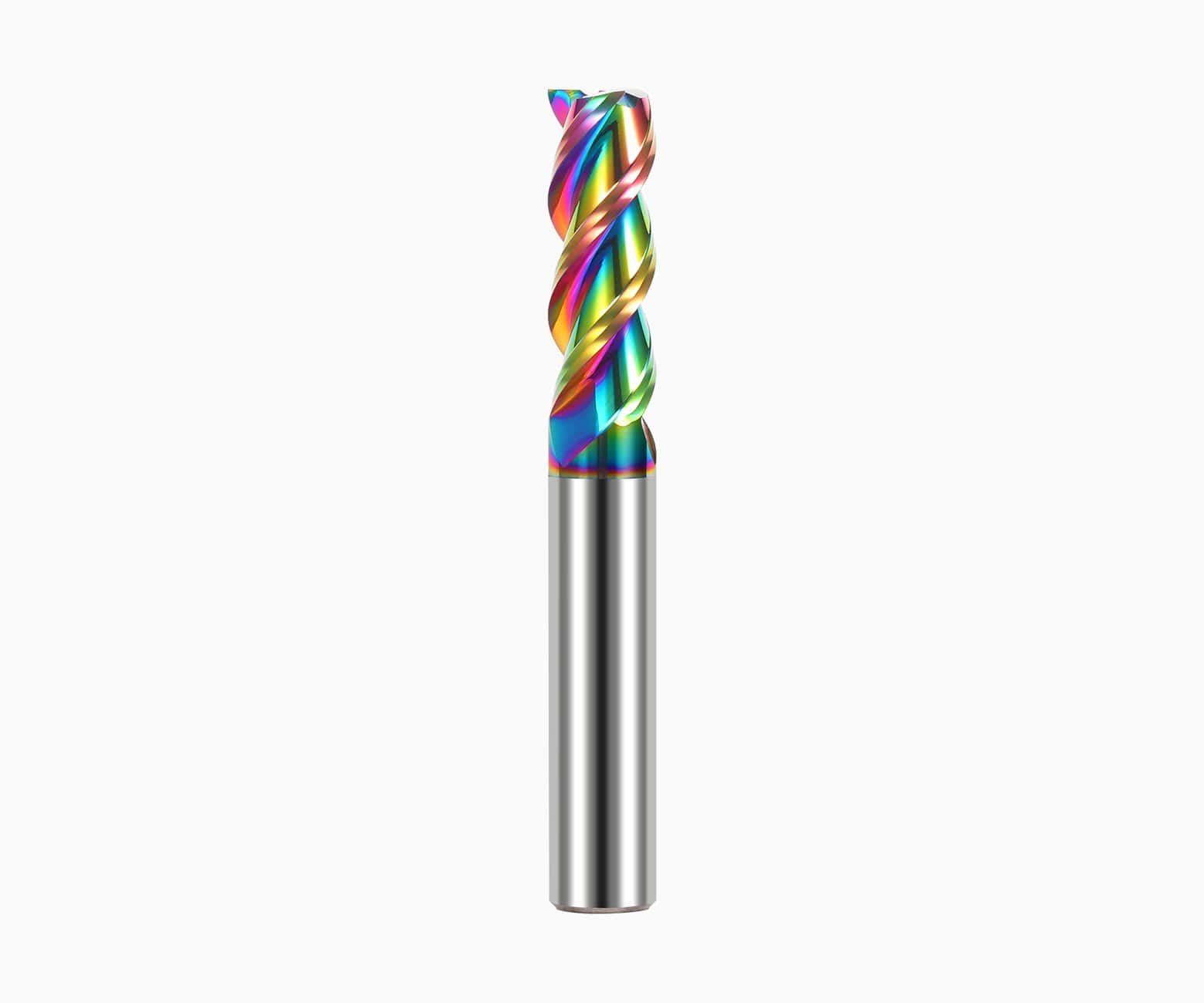

Colorful Square End Mill For Aluminum HRC55

Square End Mill For Aluminum

Colorful Square End Mill For Aluminum is a special tool for cutting, turning and milling aluminium. Due to the special nature of aluminium, conventional tools encounter rapid tool wear, poor cutting results, etc. The Colorful Square End Mill For Aluminum is optimised to solve these problems and improve machining efficiency and product quality.
Product Features:

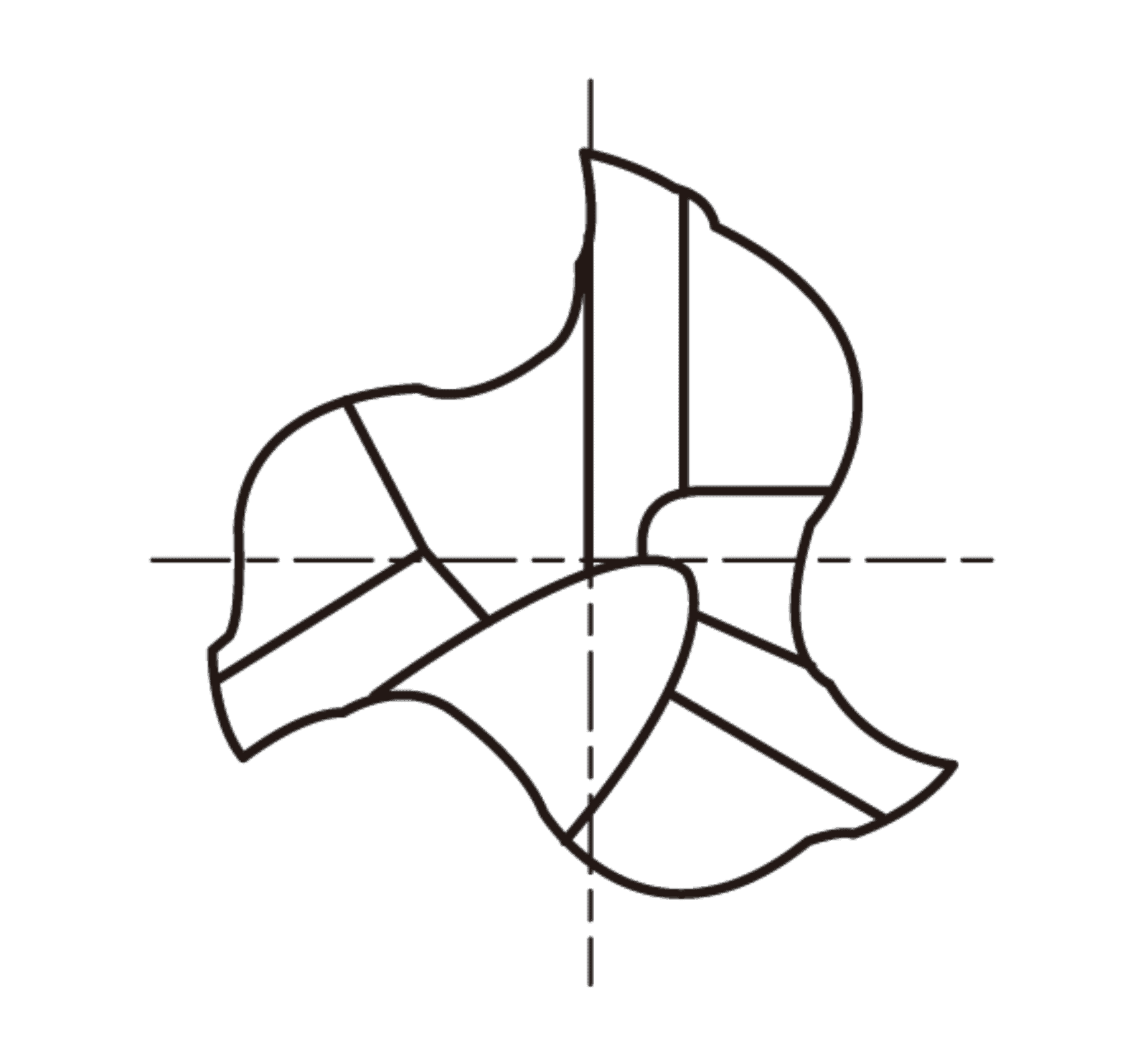

Optimised cutting edge design:

The Colorful Square End Mill For Aluminum features a carefully optimised cutting edge design that reduces cutting resistance, reduces tool wear, extends tool life and improves cutting efficiency.

Wear-resistant material selection:

Selection of high wear-resistant material cemented carbide, to increase the wear resistance of the tool, to ensure that the tool to maintain cutting stability for a long time, to improve machining accuracy.

Effective heat dissipation design:

Aluminium is easy to generate a lot of heat when machining, square end mill for aluminum is designed with heat dissipation grooves and heat dissipation fins, which can quickly transfer the heat to prevent the tool from overheating, maintain machining stability and ensure product quality.

Precision Cutting Control:

Enables finer machining and improves the surface quality of aluminium products for applications with high demands on precision and appearance.
LYQD
DLC
HRC 55

Product Detail

For Steel , Cast Iron

Unit
(mm)
D
D≤12
D>12
T
0
0
-0.015
-0.02

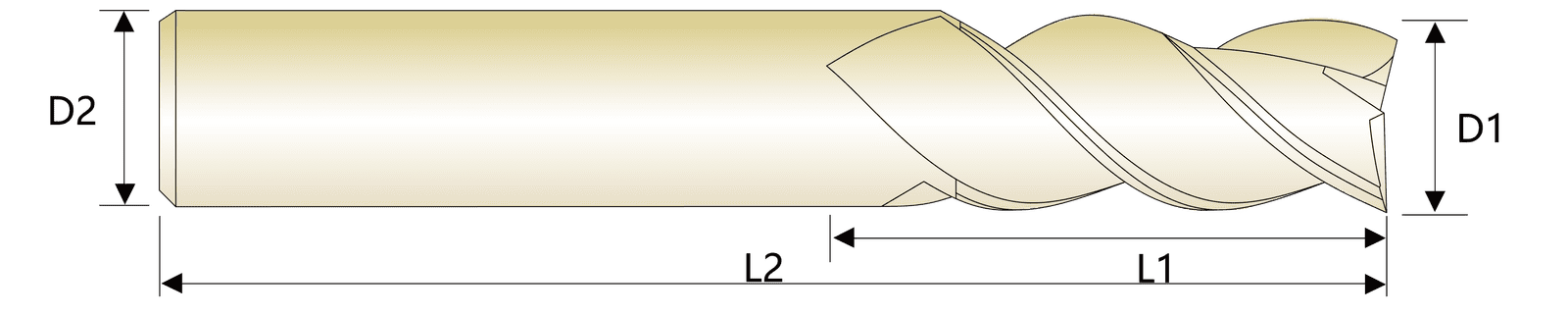

Diameterd D
Cutting Length L
Shank D2
Overall Length L2
mm
mm
mm
mm
1
3
4
50
1
3
4
50
1.5
5
4
50
2
6
4
50
2.5
8
4
50
3
9
3
50
3.5
11
4
50
4
12
4
50
5
15
4
50
6
18
6
50
7
24
8
60
8
24
8
60
9
30
10
75
10
30
10
75
11
35
12
75
12
35
12
75
14
45
14
100
16
45
16
100
18
45
18
100
20
45
20
100
Ordering Code
QCLYD550-3F-01030450
QCLYD550-3F-015050450
QCLYD550-3F-02060450
QCLYD550-3F-025080450
QCLYD550-3F-03090350
QCLYD550-3F-03090450
QCLYD550-3F-035110450
QCLYD550-3F-04120450
QCLYD550-3F-05150550
QCLYD550-3F-05150650
QCLYD550-3F-06180650
QCLYD550-3F-07240860
QCLYD550-3F-08240860
QCLYD550-3F-09301075
QCLYD550-3F-10301075
QCLYD550-3F-11351275
QCLYD550-3F-12351275
QCLYD550-3F-144514100
QCLYD550-3F-164516100
QCLYD550-3F-184518100
QCLYD550-3F-204520100

Work Material

P
M
K
N
S
H
Iso
Workpiece Material
Depth of cut (mm)
VC m/min
N
Allopys(Sis12%) Cast Aluminium Allopy(Si>12%)
Ap≤1.5D Ae≤0.2D
150 (60-350)
Rote Speed (Min-1) Feed Velocity (Mm/Min)
Tool Diameter (mm)
4
6
8
10
12
16
20
N
20000 2000
13000 1500
10000 1650
8000 1950
6600 1950
5000 2000
4000 2000
16000 2000
10600 1200
8000 1300
6500 1500
5300 1550
4000 1600
3200 1600
Above table is the standard cutting data for side mlling maching, f for groove cutting, the VC should reach 50%-70% and the fed should reach 40%-60% based on the table.
Highly efficient cutting
Surface Quality Improvement
Long-life stable operation
Responding to high temperature conditions

Example Of An Application Using Colorful Square End Mill For Aluminum HRC55

Highly efficient cutting

Surface Quality Improvement

Long-life stable operation

Responding to high temperature conditions
