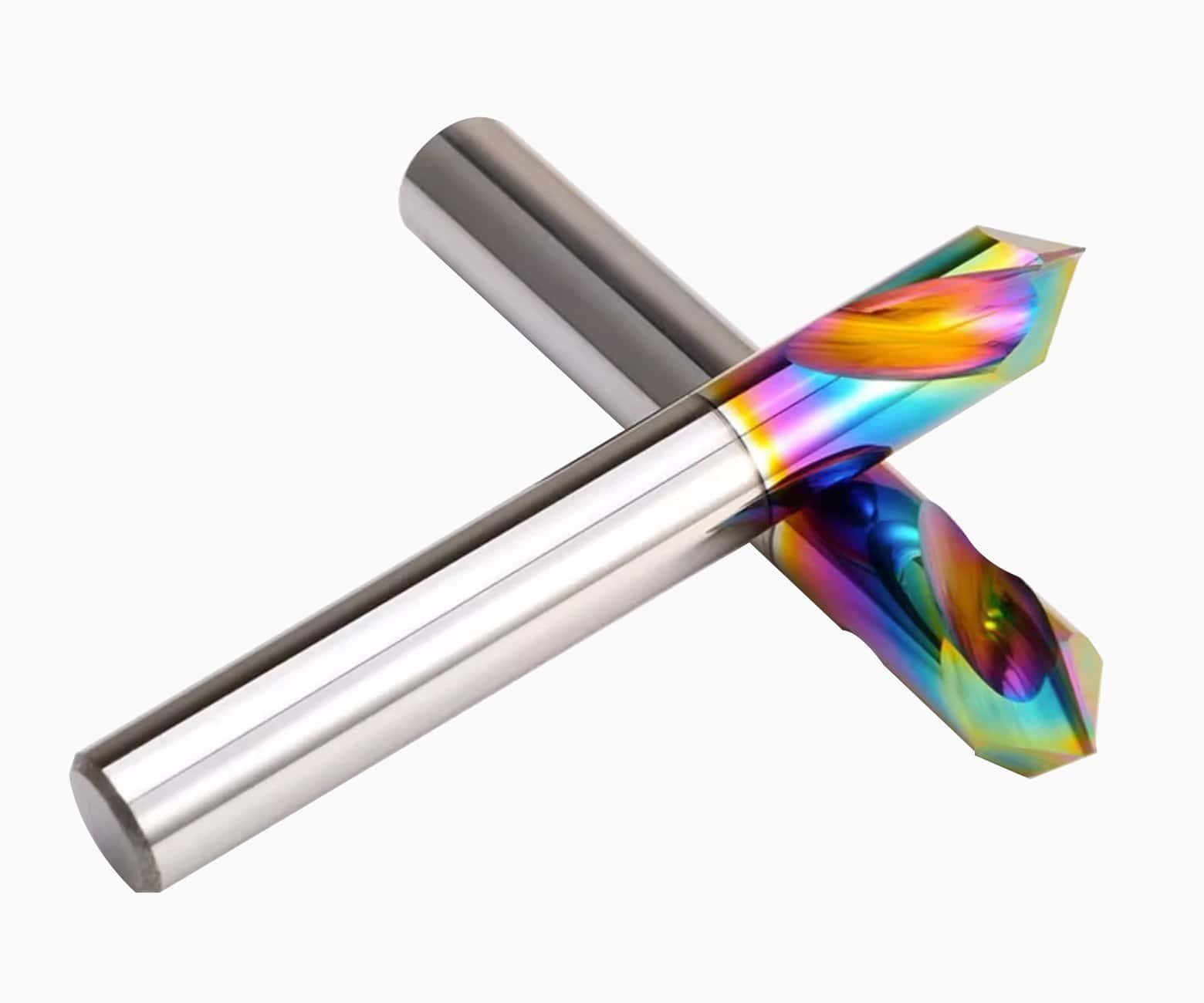

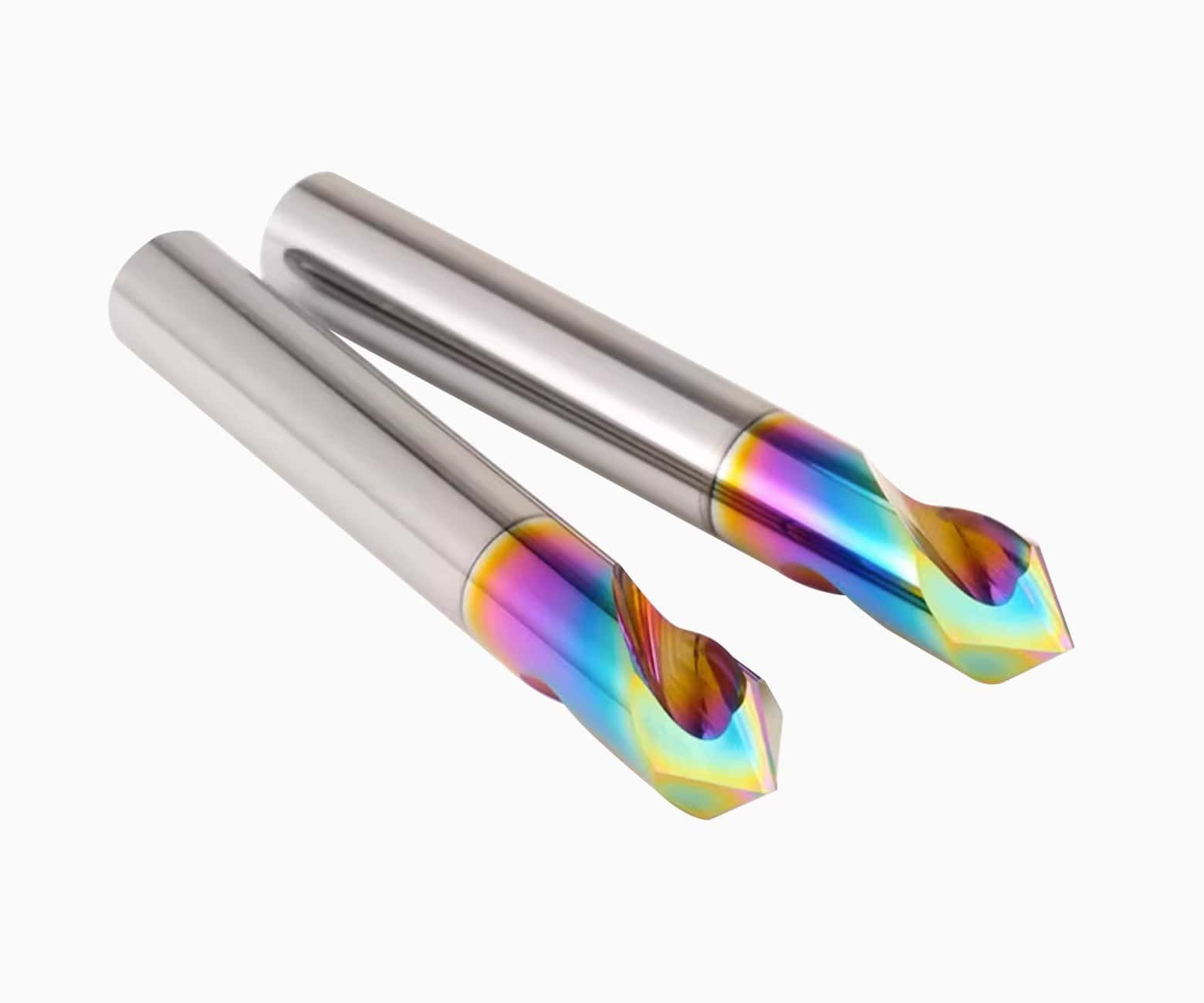

Colorful Aluminum Carbide Center Drill HRC55

Center drill

The Colorful Aluminum Carbide Center Drill is a high-performance cutting tool primarily used for machining complex structures such as aerospace components and automotive engine parts. Its unique design allows it to perform exceptionally well in high-temperature, high-speed, and high-precision cutting environments. Compared to traditional cooling methods, internal coolant technology effectively improves cutting efficiency, extends tool life, and reduces thermal deformation during the machining process.
Product Features:

Advantage of Internal Coolant Technology:

The Colorful Aluminum Carbide Center Drill utilizes internal coolant technology, allowing coolant to flow within the cutting zone. This effectively lowers the temperatures of the tool and workpiece, reducing the impact of heat on materials. This not only enhances cutting efficiency but also prevents tool wear caused by high temperatures.

High-Precision Machining:

Thanks to its unique design and internal coolant technology, the Colorful Aluminum Carbide Center Drill performs exceptionally well in high-speed and high-precision machining. It can achieve precise machining of complex structures, meeting the strict precision requirements of modern manufacturing.

Strong Material Adaptability:

This cutting tool is suitable for a variety of challenging materials, including high-temperature alloys and titanium alloys. Its tool materials and coating technologies are carefully selected, ensuring stable performance in harsh working environments.

Increased Production Efficiency:

The efficient cutting and cooling system of the Bronzing drill bit stabilize the machining process. By reducing downtime and increasing cutting speeds, it effectively improves production efficiency and lowers manufacturing costs.
QCLYDXZ
DLC
HRC 55

Product Detail

For Steel , Cast Iron

Unit
(mm)
D
D≤12
D>12
T
0
0
-0.015
-0.02

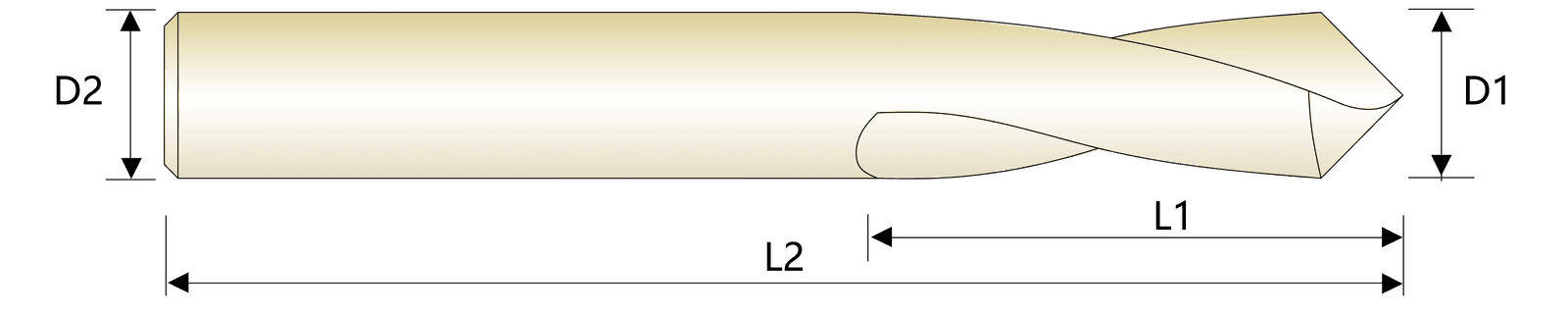

Diameter D
Angle
Shank D2
Overall Length L2
mm
°
mm
mm
1
90
4
50
2
90
4
50
3
90
4
50
4
90
4
50
5
90
5
50
6
90
6
50
8
90
8
60
10
90
10
75
12
90
12
75
4
90
4
100
6
90
6
100
8
90
8
100
10
90
10
100
12
90
12
100
16
90
16
100
Ordering Code
QCGYDXZ-2F-01900450
QCGYDXZ-2F-025900450
QCGYDXZ-2F-03900350
QCGYDXZ-2F-03900450
QCGYDXZ-2F-04900450
QCGYDXZ-2F-05900550
QCGYDXZ-2F-06900650
QCGYDXZ-2F-08900860
QCGYDXZ-2F-10901075
QCGYDXZ-2F-12901275
QCGYDXZ-2F-049004100
QCGYDXZ-2F-069006100
QCGYDXZ-2F-089008100
QCGYDXZ-2F-109010100
QCGYDXZ-2F-129012100
QCGYDXZ-2F-169016100

Work Material

P
M
K
N
S
H
Iso
Workpiece Material
Depth of cut (mm)
VC m/min
N
HRC55 Aluminum Alloy
Ap≤1.5D Ae≤0.15d
60 140
Speed(min²) Feed(mm/r)
Tool Diameter (mm)
4
6
8
10
12
16
20
N
8000 0.10-0.15
5300 0.14-0.20
4000 0.16-0.24
3200 0.18-0.27
2700 0.20-0.30
2000 0.25-0.36
1600 0.30-0.40
8000 0.10-0.15
5300 0.14-0.20
4000 0.16-0.24
3200 0.18-0.27
2700 0.20-0.30
2000 0.25-0.36
1600 0.30-0.40
Above table is the standard cutting data for side mlling maching, f for groove cutting, the VC should reach 50%-70% and the fed should reach 40%-60% based on the table.
Increased Production Efficiency
Optimized Surface Quality
Energy Consumption Reduction
Adaptation to Complex Structures

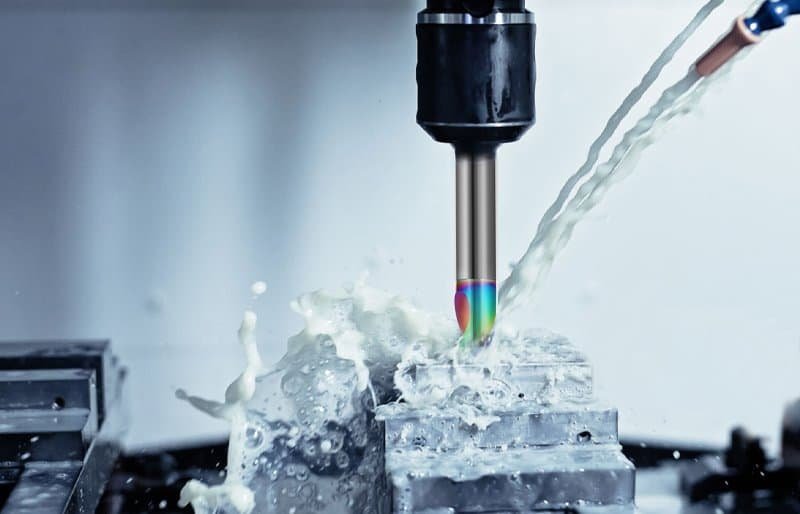

Example Of An Application Using Colorful Aluminum Center Drill HRC55

Increased Production Efficiency

Optimized Surface Quality

Energy Consumption Reduction

Adaptation to Complex Structures
