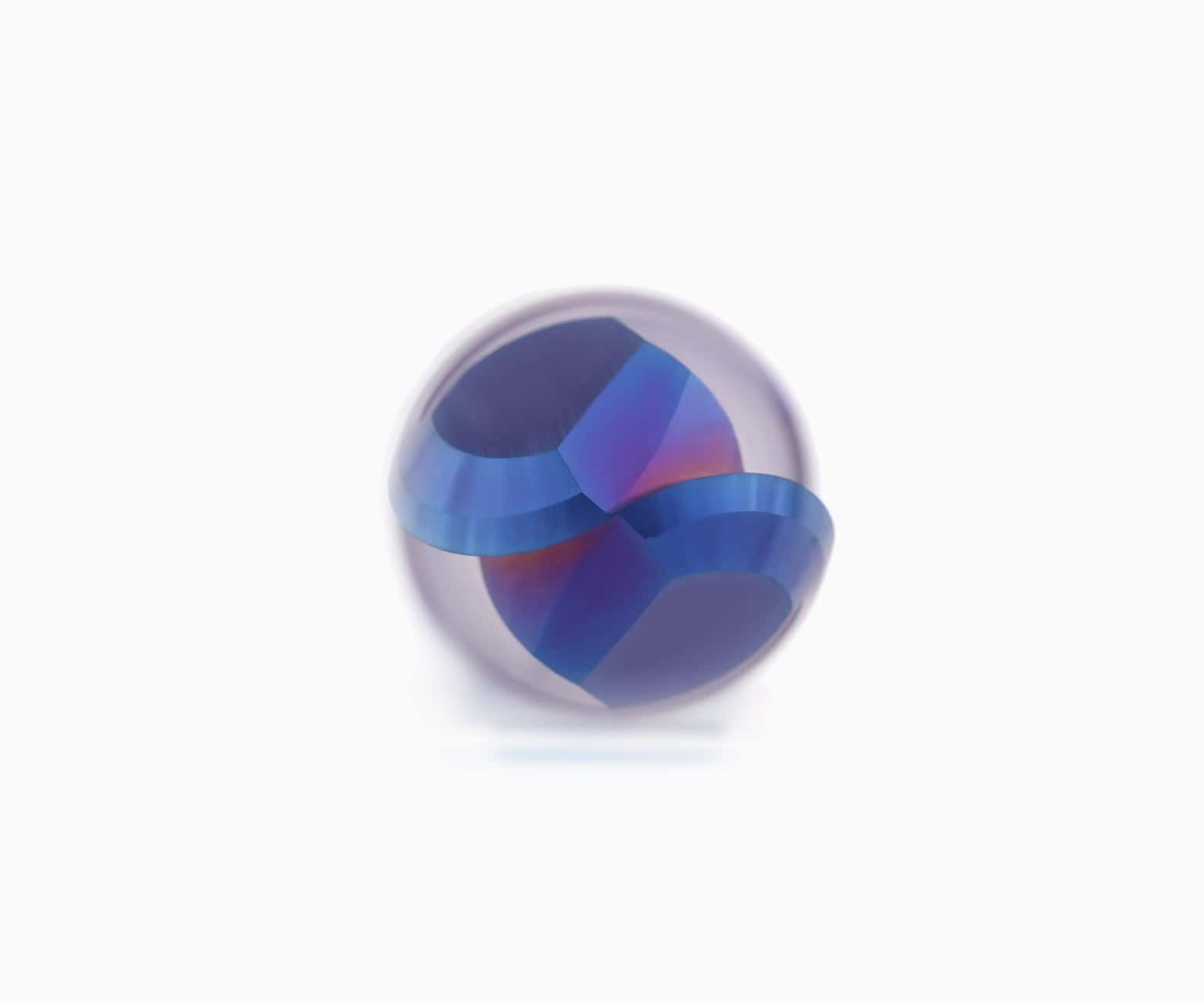

Ball Nose End Mill HRC65

Ball Nose End Mills

The Ball Nose End Mill HRC65 is a milling cutter specifically designed for Square machining, delivering outstanding performance and versatility. With high hardness, strong wear resistance, and the ability to achieve high-precision machining across various materials, it stands as an ideal choice to enhance machining efficiency and workpiece quality.
Product Features:

High Hardness:

Manufactured from high-hardness materials with a typically hardness level above 65HRC, the Ball Nose End Mill HRC65 easily handles workpieces of varying hardness, ensuring minimal deformation and wear over prolonged use, thus extending its operational lifespan.

Excellent Wear Resistance:

This milling cutter exhibits exceptional wear resistance, maintaining sharp cutting edges during high-speed machining, reducing wear rates, and extending its overall lifespan. This feature is particularly crucial in environments requiring frequent and extensive machining.

Precision Machining:

Precision in design and blade grinding processes ensures that the Ball Nose End Mill HRC65 achieves high-precision surface quality and geometric shapes during machining, meeting the demands for precision in workpiece specifications.

Versatile Application:

Suitable for a variety of materials, including but not limited to steel, aluminum, copper, etc. This versatility makes the Ball Nose End Mill HRC65 an ideal choice for diverse industrial applications, catering to the machining needs of different workpieces.
QD650
NACO
HRC68

Product Detail

For Steel , Cast Iron

Unit
(mm)
D
D≤12
D>12
T
0
0
-0.015
-0.02
Diameter D
Radius R
Cutting Length L
Shank D2
Overall Length L2
mm
mm
mm
mm
mm
1
0.5
2
4
50
1.5
0.75
3
4
50
2
1
4
4
50
2.5
1.25
5
4
50
3
1.5
6
3
50
3
1.5
6
4
50
3.5
1.75
7
4
50
4
2
8
4
50
5
2.5
10
5
50
5
2.5
10
6
50
6
3
12
6
50
7
3.5
14
8
60
8
4
16
8
60
10
5
20
10
75
12
6
24
12
75
14
7
28
14
100
16
8
32
16
100
18
9
36
18
100
20
10
40
20
100
Ordering Code
QD650-2F-01020450
QD650-2F-015030450
QD650-2F-02040450
QD650-2F-025050450
QD650-2F-03060350
QD650-2F-03060450
QD650-2F-035070450
QD650-2F-04080450
QD650-2F-05100550
QD650-2F-05100650
QD650-2F-06120650
QD650-2F-07140860
QD650-2F-08160860
QD650-2F-10201075
QD650-2F-12241275
QD650-2F-142814100
QD650-2F-163216100
QD650-2F-183618100
QD650-2F-204020100

Work Material

P
M
K
N
S
H
IsoWorkpiece MaterialDepth of cut (mm)VC m/min
PCarbon Steel, Alloy Steel (<45HRC)
Alloy Steel (HRC50)
AP≤1.5D180rote speed(min-1)
Ae≤0.15Dfeed velocity(mm/min)
AP≤1D130rote speed(min-1)
Ae≤0.12Dfeed velocity(mm/min)
KGrey Cast Iron (<32HRC)
High-Alloy Cast Iron (35~45HRC)
AP≤1.5D160rote speed(min-1)
Ae≤0.15Dfeed velocity(mm/min)
AP≤1D140feed velocity(mm/min)
Ae≤0.12Dfeed velocity(mm/min)
MStainless SteelAP≤1.5D160rote speed(min-1)
Ae≤0.15Dfeed velocity(mm/min)
AP≤1D140feed velocity(mm/min)
Ae≤0.12Dfeed velocity(mm/min)
Tool Diameter (mm)
4
6
8
10
12
16
20
P
8000 535
5300 570
4000 565
3200 560
2650 560
2000 525
1600 515
8000 535
5300 570
4000 565
3200 560
2650 560
2000 525
1600 515
K
8000 535
5300 570
4000 565
3200 560
2650 560
2000 525
1600 515
8000 535
5300 570
4000 565
3200 560
2650 560
2000 525
1600 515
M
5500 125
3700 135
2800 135
2200 135
1850 135
1400 105
1100 105
5500 125
3700 135
2800 135
2200 135
1850 135
1400 105
1100 105
Above table is the standard cutting data for side mlling maching, f for groove cutting, the VC should reach 50%-70% and the fed should reach 40%-60% based on the table.
High Efficiency Machining
Precision Machining Accuracy
Superior Surface Finish
Versatility Across Materials

Example Of An Application Using ball nose End Mill HRC65

High Efficiency Machining

Precision Machining Accuracy

Superior Surface Finish

Versatility Across Materials
